TC Tipped Scoring Saw - 100x20 z=12+12

Quick Overview

100,00X2,80-3,60/4,00X20,000 Z12+12 Split Scribe

  • Attribute D : 100 mm
  • Attribute B : 2.8-3.6 mm
  • Attribute b : 4.00 mm
  • Attribute d : 20.00 mm
  • Attribute Z : 12W+12W

Availability: In stock

Part Number: 002610020

100,00X2,80-3,60/4,00X20,000 Z12+12 Split Scribe

  • Attribute D : 100 mm
  • Attribute B : 2.8-3.6 mm
  • Attribute b : 4.00 mm
  • Attribute d : 20.00 mm
  • Attribute Z : 12W+12W
Diameter (D) 100.00 mm
Kerf 2.8-3.6 mm
Plate 4.00 mm
Bore 20.00 mm
Attribute Machine Martin, Panhans, Schelling
Attribute Z 12W+12W
Number of Teeth 12+12
Order Number 002610020
Application Scoring of laminated wood-based material, parallel feed Scoring of post forming components
Material Plastic laminated and foil-coated wood-based material
Machine Panel sizing unit horizontal with scoring aggregate, trimming saw with scoring aggregate

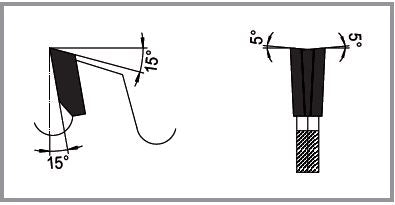

Design Conical flat tooth for long tool service life and high feed rate. Conical alternate top bevel tooth for aggregates with low machine power. Alternate top bevel tooth for post forming cuts Alternate top bevel tooth with axial angle for post forming cuts
